Off-grid solar power systems harness energy from the sun, convert it into electricity, and store it in batteries for use when needed. To ensure the system runs efficiently, it's essential to maximize the charge delivered to the battery. Optimizing battery performance involves more than simply connecting a solar panel to the battery; it requires precise control of the charging process.

One of the most advanced types of charge controllers is the Maximum Power Point Tracking (MPPT) solar charge controller. In this article, we'll explore what an MPPT solar charge controller is, how it works, and the key pros and cons of using one in your solar power system.

Part 1: What Is an MPPT Solar Charge Controller?

When solar panels collect energy, they often generate more power than your batteries can handle. To ensure your system operates efficiently, you need to regulate the flow of energy into the battery. This is where a charge controller comes in, managing and optimizing the energy transfer for the best possible storage.

The energy from your solar panels is delivered to the battery as both voltage and amperage. Voltage refers to the "pressure" of the electrons, while amperage measures the flow, or current, of those electrons. Together, these factors create power, measured in watts. Maximizing the power output of your solar system requires balancing volts and amps effectively.

An MPPT (Maximum Power Point Tracking) solar charge controller is a device designed to maximize the energy harvest from solar panels. Solar panels produce direct current (DC) power, which fluctuates depending on factors like sunlight intensity and temperature. The MPPT controller continuously monitors these fluctuations to ensure the system operates at the solar panel's optimum power output, called the maximum power point.

Unlike simpler charge controllers, such as Pulse Width Modulation (PWM) controllers, which only reduce the voltage from the solar panels to match the battery, MPPT controllers adjust both voltage and current. This sophisticated tracking system allows the MPPT controller to deliver higher efficiency and better energy utilization, especially in less-than-ideal conditions.

Part 2: How Does an MPPT Solar Charge Controller Work?

The solar power system reaches peak efficiency when the energy input from the panels aligns with your battery's needs. If the power input is too high, energy is wasted; if too low, your batteries won't store enough energy for effective use. Striking the right balance between power input and battery capacity is crucial for optimizing system performance.



To maximize wattage from your solar setup, you need the correct combination of voltage and amperage. Wattage is calculated by multiplying volts by amps. For instance, if your battery operates at 12 volts, the amperage must be sufficient to match the panel’s output. However, manually balancing these values is tricky, as the panel output must exceed the battery voltage for proper charging, and the relationship between voltage and amperage isn’t linear.

The maximum power point represents the ideal balance of voltage and amperage, where the system generates the most energy with minimal losses. This balance shifts throughout the day due to factors like sunlight angle, cloud cover, temperature, and weather conditions, making manual calculation impractical.

This is where the MPPT (Maximum Power Point Tracking) charge controller comes into play. It continuously tracks environmental changes and adjusts voltage and current levels in real time to keep the system operating near the maximum power point. By automatically regulating the energy flow, the MPPT controller ensures peak efficiency, maximizing energy harvest at every moment.

An MPPT controller performs three key tasks:

• Voltage Conversion: It adjusts the voltage from the solar panels to match the battery’s charging requirements, while optimizing current flow. For example, a 36V panel can more efficiently charge a 12V battery using an MPPT controller to handle the voltage conversion.
• Tracking the Maximum Power Point: The controller continuously monitors solar panel output, adjusting to fluctuations caused by environmental conditions to ensure the highest possible energy conversion.
• Preventing Battery Overcharging: MPPT controllers protect your battery by regulating the energy flow, preventing overcharging and extending the battery’s lifespan.

By handling these tasks, an MPPT controller ensures that your solar system runs at maximum efficiency, adapting to changes throughout the day and providing the optimal energy balance for your batteries.

Part 3: What Is the Difference Between MPPT and PWM Solar Charge Controllers?

When choosing a solar charge controller, two main types are available: MPPT (Maximum Power Point Tracking) and PWM (Pulse Width Modulation). While both regulate the flow of energy from solar panels to batteries, they operate differently, which impacts system performance.

A PWM charge controller modulates the current from the solar panels by rapidly opening and closing a transistor to control the flow into the battery. However, it only affects the current (amperage) and not the voltage. This means it can reduce the amperage without optimizing the voltage, limiting its ability to maximize the total power (wattage) from the panels.

In contrast, an MPPT charge controller adjusts both voltage and current, allowing it to optimize the power output from the solar panels. By tracking the maximum power point, it dynamically rebalances the system to ensure the highest possible efficiency. This makes MPPT controllers far superior in harnessing energy, particularly in variable weather conditions.

In summary, the key difference is that while a PWM controller can only reduce current, which may lower the panel’s overall wattage, an MPPT controller optimizes both voltage and current, enabling your system to produce more energy and operate at maximum efficiency. This makes MPPT controllers the preferred choice for larger or more complex solar systems.

Part 4: Pros and Cons of MPPT Solar Charge Controller

Below, we explore the advantages and disadvantages of using MPPT controllers in solar energy applications.

4.1 Pros of MPPT

Using an MPPT controller significantly boosts the efficiency and performance of your solar generator, offering several advantages that help you save money and recoup your investment in your solar power system faster.

1. More Efficient Power Transfer

Both types of solar charge controllers regulate the flow of energy from your panels to the battery, but the current must be carefully managed because a battery can only hold so much power at a time. If too much current is sent, most of that energy will be lost. Unlike PWM controllers, the MPPT controller optimizes both voltage and current, allowing your system to store more of the available wattage from your solar panels. This efficiency is crucial for maximizing the performance of your solar power system and meeting your energy needs.

2. Less Dependence on Weather Conditions

An essential factor in solar power is the ability to store energy for use when sunlight is limited. On cloudy days, the optimal power point fluctuates throughout the day. The more time your system operates away from this optimal balance, the less efficient it becomes. An MPPT controller constantly adjusts to these environmental changes, helping your system maintain the highest possible energy output regardless of weather conditions.

3. Fewer Panels Required

When you can capture more power from each solar panel, you need fewer panels to meet your energy requirements. This not only saves you money on purchasing a smaller solar array but also gives you greater flexibility in panel placement. You can focus on positioning your panels in areas that receive the most sunlight, optimizing energy conversion.

4. Ideal for Large Solar Systems

As your solar system grows, maximizing the efficiency of each panel becomes even more important. In larger arrays, the cumulative energy loss from each panel can add up. By using an MPPT controller, you significantly improve energy output across your entire array. The efficiency gains from each panel translate into substantial benefits over time, especially in large-scale systems.

5. Faster Return on Investment

While an MPPT controller has a higher upfront cost compared to a PWM controller, its added functionality makes it a better long-term investment. Solar energy systems reduce energy costs and lower your carbon footprint, and an MPPT controller allows you to realize these benefits more quickly and fully than a PWM controller, ultimately speeding up your return on investment.

4.2 Cons of MPPT

1. Higher Cost

The advanced technology of MPPT controllers comes with a higher price tag compared to PWM controllers. For small-scale solar setups with just a few panels, the cost-benefit of MPPT may not be worth it.

2. Complexity

MPPT charge controllers are more complex than their PWM counterparts, requiring more attention during installation and setup. While the technology provides significant advantages, it can be overkill for small, simple solar systems that don't require high efficiency.

3. Bulkier Size

MPPT controllers are generally larger and heavier than PWM controllers due to their more sophisticated electronics. This can be a drawback in installations where space is a concern, such as in compact off-grid cabins or small RVs.

4. More Energy Usage in Warm Climates

MPPT controllers work best in cold or variable climates. In consistently warm environments, the efficiency advantage over PWM controllers may be reduced, as higher temperatures decrease the voltage difference that MPPT controllers thrive on.

MPPT solar charge controllers are an excellent choice for maximizing energy efficiency and adapting to varying solar conditions, making them suitable for larger or more complex solar systems. However, their higher cost and complexity may not make them the best option for every application, especially smaller or budget-limited setups.

Part 5: How to Choose an MPPT Charge Controller

When selecting an MPPT charge controller for your off-grid solar system, several important factors should be taken into account, including size, features, and overall quality.

Size: The appropriate size of the MPPT charge controller is determined by the maximum power output of your solar panels and the maximum charging current of your battery bank. To calculate the size, considering the battery system capacity.

For example, if a 12V 100Ah battery needs to be fully charged in 5 hours, the required charging current would be 20A. Since the charging current does not always operate at its maximum, it is advisable to select an MPPT model with an output current greater than the required charging current. In this case, you could opt for an MPPT charge controller rated above 20A.

Features: MPPT charge controllers come with various features that may include display options, communication capabilities, protection mechanisms, and programmability. These features can differ significantly based on the model and manufacturer.

Quality: The quality of an MPPT charge controller is influenced by its design, materials used, warranty offered, and the manufacturer's reputation. These factors play a crucial role in determining the device's performance, durability, and safety.

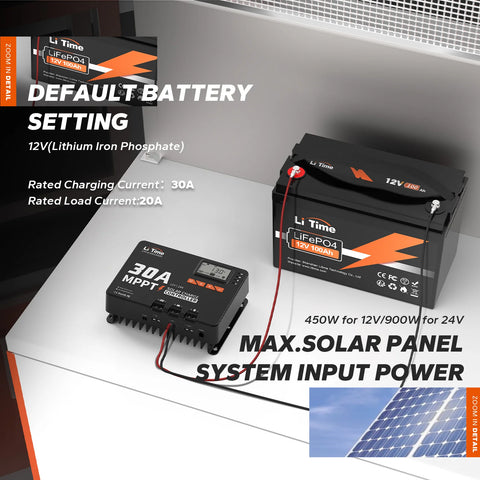

LiTime MPPT solar charge controllers provide multiple safety protection such Reverse Connection, Overpower, Overvoltage, Short-circuit, and Over-temperature.

Final Thoughts

The MPPT solar charge controller stands out as the best choice for anyone seeking maximum efficiency and energy production from their solar system. Although it comes at a higher cost and requires a more complex setup, the benefits—especially for larger systems and those operating in variable climates—make it a superior option. For those committed to harnessing the full potential of solar energy, investing in an MPPT controller can lead to better performance and longer battery life, saving you money in the long run.

By optimizing the energy your solar panels produce, MPPT controllers ensure you make the most of every ray of sunshine.
